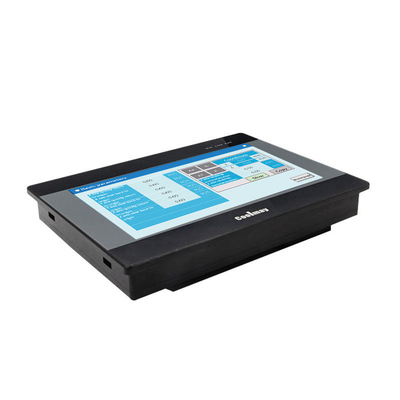

Coolmay 7 Inch EX3U-8070H-2AD2DA Industrial 24v Digital Analog Input Touch Screen Panel Small Mini Plc HMI Integrated
| Lugar de origem | porcelana |
|---|---|
| Marca | Coolmay |
| Certificação | CE |
| Número do modelo | EX3U-8070H-44MT-485P |
| Quantidade de ordem mínima | 2 unidades |
| Preço | US$129~299 per unit |
| Detalhes da embalagem | Embalado com caixa de cartão padrão |
| Tempo de entrega | 3-5 dias úteis |
| Termos de pagamento | T/T, Western Union |
| Habilidade da fonte | 100, 000 pcs por mês |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tipo | Controlador industrial | I/O de Digitas | 24DI/20DO |
|---|---|---|---|
| Tipo de saída | Transistor | PID | - Sim, sim. |
| Output HS | Y0~Y3 100KHz, Y4~Y7 10KHz | Ethernet | Sim, para o PLC |
Descrição de produto
7 Inch Industrial 24v Digital Input Analog Touch Screen Panel Small Mini Plc HMI Integrated
EX3U-80 HMI PLC combo series are powerful programmable controllers with incredible HMI features, backed by the most efficient programming software mView. It is superbly compact, 4.3", 5″, 7” or 10.1″ are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.
Features
-
Built-in, high-quality 4.3", 5″, 7” or 10.1″ HMI touch panel
-
Powerful PLC: 32,000 steps program, support PID automation
-
Built-in COM ports: RS232, RS485, USB type C, Ethernet (optional)
-
Support high-speed counting, high-speed pulse, communication port integrated
-
Support arc and linear interpolation
Specifications
|
Model |
EX3U-8070H-44MT-485P |
|
|
Display |
Dimension |
200*146*36mm |
|
Cutout size |
192*138mm |
|
|
Power Consumption |
6-7W |
|
|
Feature |
60K-color resistive touch screen, supports portrait display |
|
|
Memory |
RAM |
128MB |
|
ROM |
NOR Flash 128MB |
|
|
CPU |
CPU Dual-core 1GHz |
|
|
I/O |
DI/DO |
24DI/20DO, transistor outputs, NPN input |
|
High-speed function |
High-speed counting |
Single phase 6 channel 60KHz |
|
High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
|
|

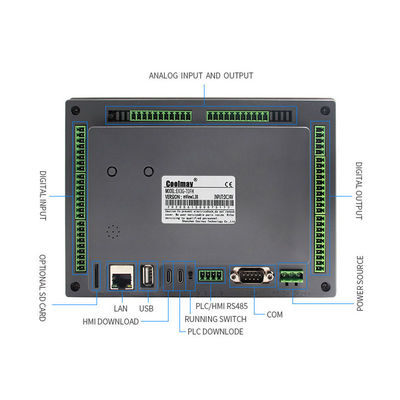

Connection |
HMI |
Type-C HMI download port (can download PLC program through the USB penetrating function), RS232 port |
|
PLC |
1 TYPE-C, 1 RS232 (program port), 1 RS485 communication port |
|
|
Software |
HMI |
Coolmay VCool HMI Programming Software |
|
PLC |
Coolmay Vtool pro |
|
Positioning control——high-speed pulse
-
Transistor output CPU: conventional 8-axis, YO-Y3 is 100KHz,Y4-Y7 is 10KHz
-
Support positioning, can quickly complete the positioning function, up to 8 axies
-
Each axis control is realized by instructions, PLC program is highly readable and easy to maintain
Short time to download program
-
Based on Tycpe-C/Type-B port, mini USB port, program download is quick and time-savingThe USB interface conforms to the USB specification and uses a commerciallyavailable USB cable, which can perform high-speed data transmission and greatlyshorten the download time.
-
Through the USB penetration function of the touch screen,HMl and PLC program-ming use the same programming cable, users do not need to change repeatedly, allonly need one cable.
Applications
Hot air sealing machine
Process flow diagram
