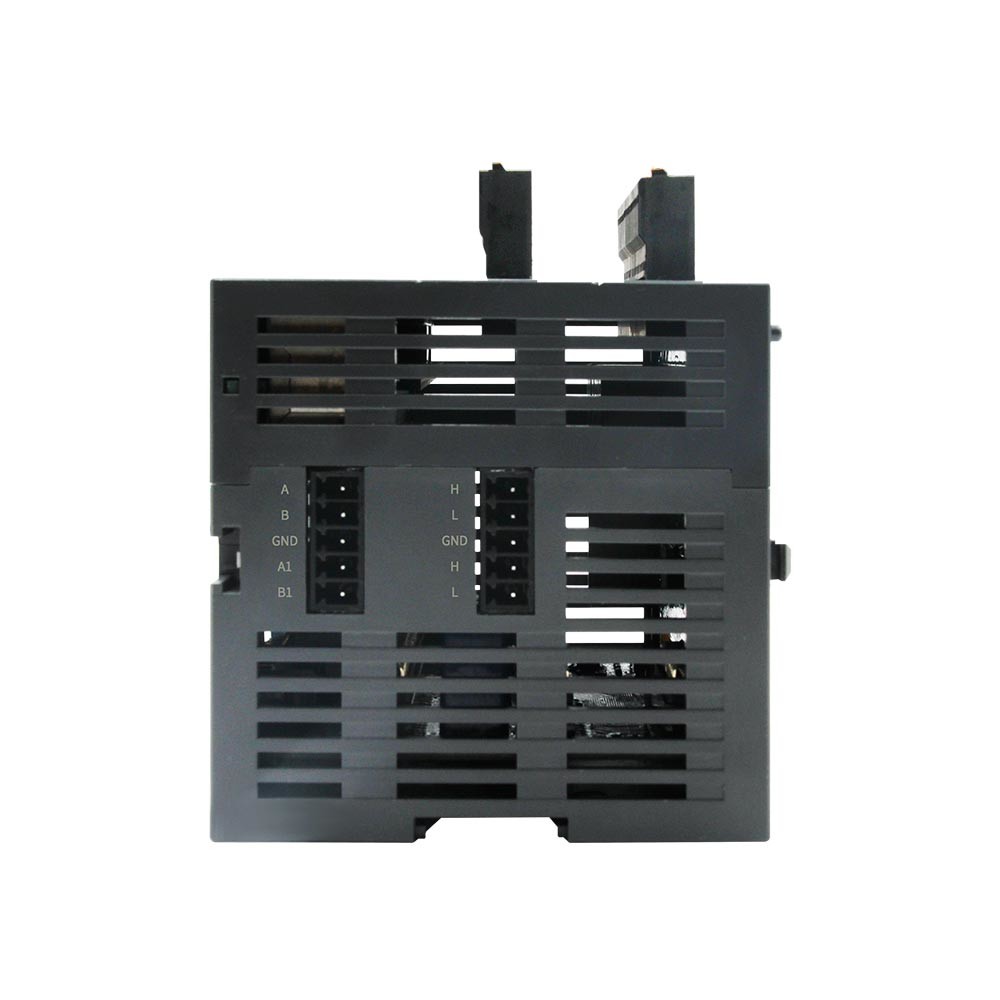

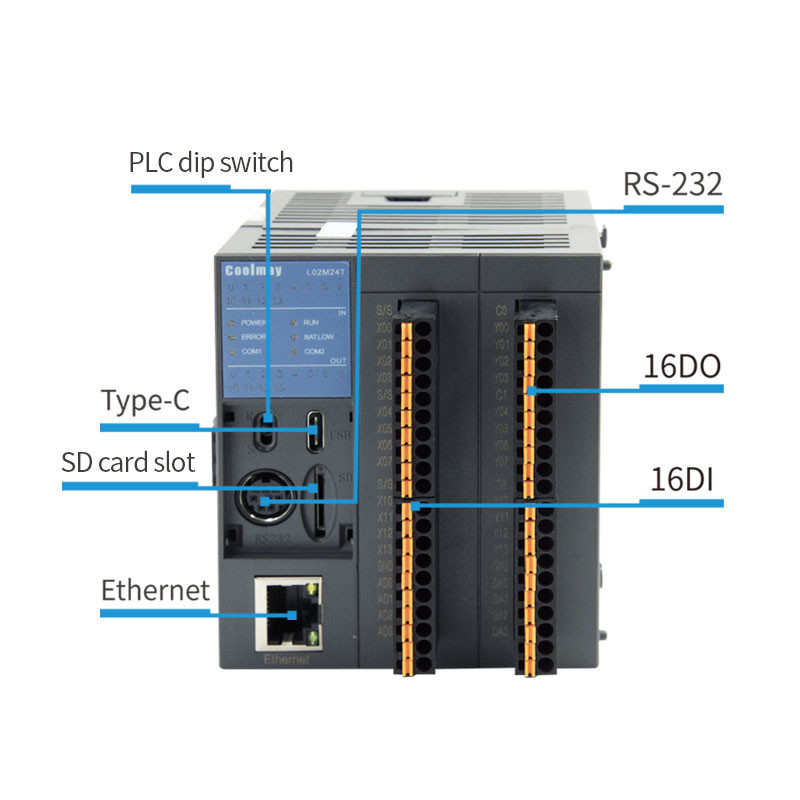

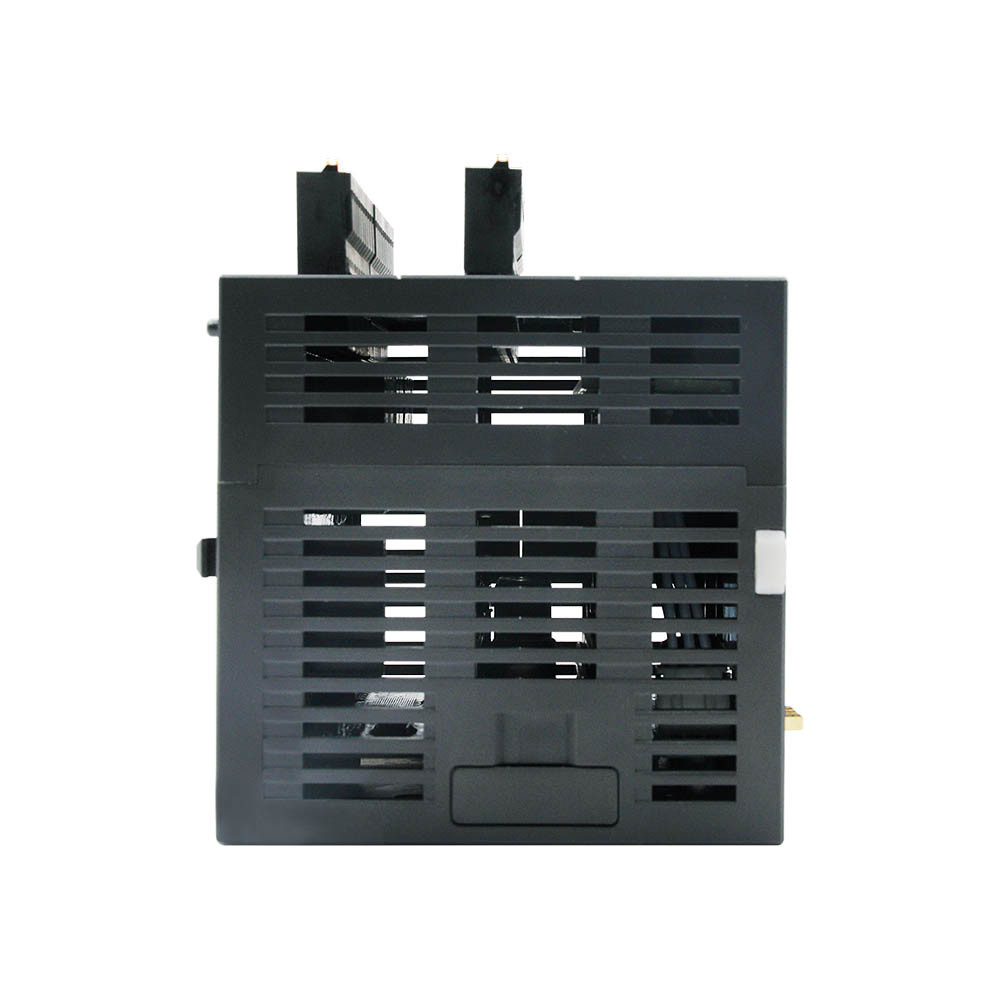

Ethernet Port Control PLC Programming Logic Controller 4AD 4DA Analog
| Lugar de origem | Shenzhen, China |
|---|---|
| Marca | COOLMAY |
| Certificação | CE |
| Número do modelo | L02M24T |
| Quantidade de ordem mínima | 1 conjunto |
| Preço | USD 107-132 per set |
| Detalhes da embalagem | embalagens de cartão |
| Tempo de entrega | 3-8 dias úteis |
| Termos de pagamento | T/T, Western Union |
| Habilidade da fonte | 100.000 Conjuntos por mês |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| CPU I/O digital | 12DI/ 12DO | CPU I/O analógico | 4AD/4DA |
|---|---|---|---|
| Tipo DO | Saída do transistor | Capacidade do programa | 32K passos |
| Temperatura de funcionamento | 0~50℃ | Umidade de funcionamento | 5~95%, sem condensação |
| Destacar | 4AD 4DA PLC programming Logic Controller,Ethernet port PLC programming Logic Controller,analog PLC programming Logic Controller |
||
Descrição de produto
Ethernet port Control PLC programming Logic Controller 4AD 4DA analog
Coolmay L02 series PLC is a high-function general-purpose controller specially designed for automation equipment. L02 series modules can be expanded up to 31 units. Powerful positioning control function can support up to 8 axis high-speed pulse control at the same time. Suitable for various automation equipment, such as electronics manufacturing, labeling, food packaging, textile equipment and other industry equipment.
| Programming language | Ladder diagram(LD) / lnstruction list / Sequential function chart(SFC) | |
| Program capacity | 32k steps | |
| Expansion model | Max limit of 31 units: max 12 analog input/output respectively | |
| Max l/O | FX3U mode: 512 points; FX3G mode: 256 points (the sum of input and output points) | |
| CPU Digital I/O | 12DI/ 12DO | |
| CPU Analog I/O | 4AD/4DA | |
| High-speed pulse | 4-axis 200KHz+4-axis 100KHz | |
| High-speed counter | 6 channels 60KHz | |
| Do type | Transistor output, load maximum 500mA, low level NPN, COM connected to negative | |
| Default COM | Type-C, RS-232, RS-485*2, Ethernet, CAN | |
| Protocol | Mitsubishi programming port Modbus RTU, Modbus TCP, Modbus UDP, | |
| freeport protocol, CAN, Ethernet/IP, Mitsubishi BD board | ||
| Data backup function No battery storage |
Program | Flash ROM |
| Retentive area | MRAM has no write limit | |
| Calendar(RTC) | Commercially available batteries CR1620(optional) | |
| Self-diagnosis | CPU abnormalities, internal memory problems, etc | |
| Rated input voltage | 24VDC(土10%) | |
| Software | Compatible with WORKS 2 | |
| Detailed info. refer to Coolmay L02 Series PLC Progarmming Manual L02 Series PLC Controller User Manual | ||
The LO2 series PLC has the following characteristics:
1. Strong expandability, 31 modules can be expanded, the maximum I/O can reach 512 points (need to expand the module in the case of power failure).
2. It can be specially encrypted, and the password is set to 12345678 to completely prohibit reading the program.
3. Powerful positioning control function can support 8-axis high-speed pulse function at the same time.
4. High-efficiency computing capability, basic instruction execution speed can reach 0.35us.
Demension:
